PreviewPage.ProjectName returns incorrect value

English Forum
,
1

Hello
I have created a preview file using layoutsIds as below.

var selectedLayouts = "repository://{8D946313-F171-479E-9FD5-FBBE80008CF3};repository://{9AE60C92-7F17-497D-96EB-43CCF4665752}"
var exportConfiguration = new ExportConfiguration(LlExportTarget.Preview, llDetailsFile, selectedLayouts);
ll.Export(exportConfiguration);
var previewFile = new PreviewFile(llDetailsFile, true, "", LlLanguage.English, true);
foreach(var page in previewFile.Pages)
{
      Console.WriteLine(page.ProjectName); //This gives same value for all the pages eventhough the pages are printed using different layout Ids.
}

As shown above, the value for “page.ProjectName” is same for pages printed from different layouts. It will differ only in case of TOC or IDX layouts. How can we get the correct the ProjectName of the layouts?

2

Hello,

we tried to reproduce the behavior with our repository sample. However, without success. Can you reproduce the described behavior? You can find the sample in your List & Label installation directory:

...\combit\LL30\Samples\Microsoft .NET\.NET 8\WinForms\Repository Sample

Can you give us some more information about the List & Label version you are using?

3

Hello
I am using LL30. I have tried the following code in the sample application. There was only one value in the output as shown in Watch window even though I have given two layoutIds in the ExportConfiguration.

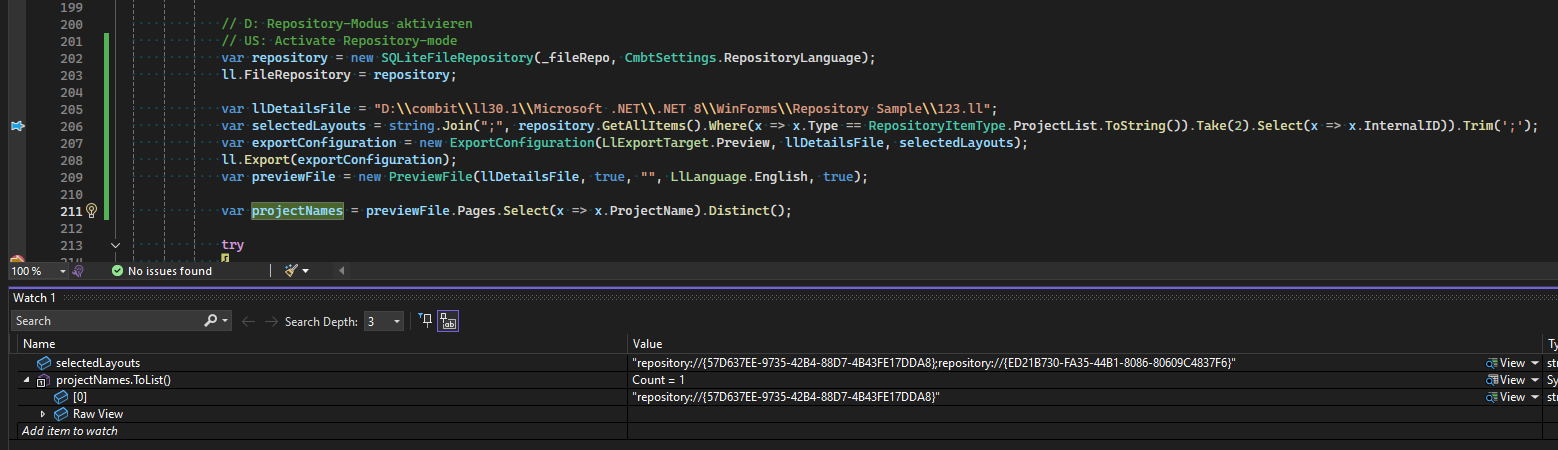

image1558×450 84.2 KB

            var repository = new SQLiteFileRepository(_fileRepo, CmbtSettings.RepositoryLanguage);
            ll.FileRepository = repository;

            var llDetailsFile = "D:\\combit\\ll30.1\\Microsoft .NET\\.NET 8\\WinForms\\Repository Sample\\123.ll";
            var selectedLayouts = string.Join(";", repository.GetAllItems().Where(x => x.Type == RepositoryItemType.ProjectList.ToString()).Take(2).Select(x => x.InternalID)).Trim(';');
            var exportConfiguration = new ExportConfiguration(LlExportTarget.Preview, llDetailsFile, selectedLayouts);
            ll.Export(exportConfiguration);
            var previewFile = new PreviewFile(llDetailsFile, true, "", LlLanguage.English, true);

            var projectNames = previewFile.Pages.Select(x => x.ProjectName).Distinct();
4

Admittedly, that is really surprising. Your code works perfectly for us.

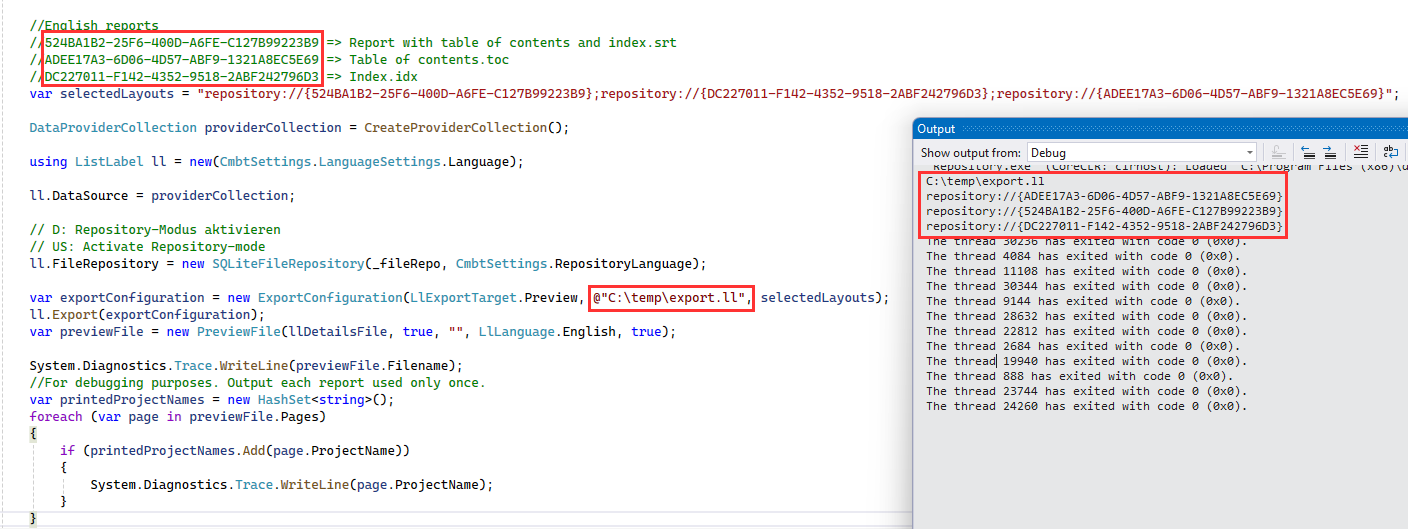

image1408×529 129 KB

Attached in the ZIP our the sample - with your code. We have only adjusted the debug output and the path to the LL preview file. Could please check that sample? If the behavior is still the same, then please contact our support team for a further investigation.

Repository Sample.zip (2,6 MB)

5

As I have already mentioned in my initial query the issue will not happen for ToC and IDX layouts. They are considered separately. The issue happens when there are two or more layouts(eg: of type List, not Index or Table of Contents). In the example that you provided, we have one Index, one ToC and one List. The issue will not happen here. You need to add one more List layout and you can see the issue. To reproduce the issue easily, select the layouts as I have given

var selectedLayouts = string.Join(";", repository.GetAllItems().Where(x => x.Type == RepositoryItemType.ProjectList.ToString()).Take(2).Select(x => x.InternalID)).Trim(';');
6

I noticed the same behaviour. PreviewPage.JobName and PreviewPage.ProjectName refer to the first project in AutoProjectFile except for TOC/IDX.

7

You are absolutely right. Please excuse this error on my part. It seems that only the ID/report file name of the first report is returned. I have already handed it over to our development department and hope to share new information asap.

1 Like
8

Hello

Any update on this?

9

Hi Philip,

We were able to find a cause for the behavior and fix it. If you have an active subscription, you can use the latest LL30 LastestPrerelease Service Pack from the support area to get the fix (requires a new cmLS30.dll/cxLS30.dll).

To get access to the ProjectName of each page the code needs to be modified:

            var previewFile = new PreviewFile(llDetailsFile, true, "", LlLanguage.English, true);
            string sMsg= "";
            int nCurrentPage = -1;
            foreach (var page in previewFile.Pages)
                sMsg += (++nCurrentPage).ToString() + ":'" + combit.Reporting.LlCore.LlStgsysGetPageOptionString(previewFile.Handle, page.PageIndex, (LlStgsysOption)126) + "'\n";
            MessageBox.Show(sMsg); //This gives same value for all the pages eventhough the pages are printed using different layout Ids.

Thanks for your patience.

Regards,
Chris
